DESCRIPTION

Basic Info.

Model NO.	MBP-Pro
Certification	ISO, MSDS, CE, ASTM,SGS
Color	White
Usage	Outdoor, Indoor, Underground
Transport Package	10000sqm/40FT Container
Specification	1.2mm thickness*1m or 2m wide*20m long
Trademark	CANLON
Origin	China

Product Description

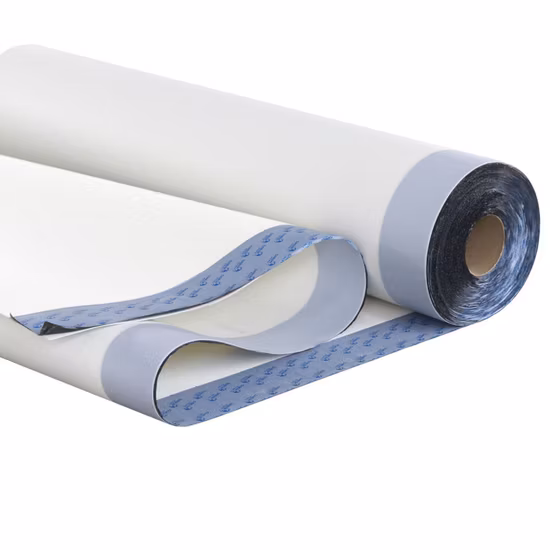

MBP Pro,a Professional waterproofing membrane developed for below grade slabs and confined sites of behind basement walls.Product description:MBP Pro waterproofing membrane is a special composite sheet comprised of a robust HDPE or TPO layer, a pressure-sensitive adhesive layer and a special protective layer applied to protect adhesive layer from external factors. Thanks to this feature, it is a professional waterproofing membrane in the composite structure which does not allow water to move between the reinforced concrete structure and membrane. The membrane has two sided bonding overlaps.Material thickness:2 mm, 1.7 mm, 1.5 mm and 1.2 mmPacking:1 x 20 mt in rolls and 2 x 20 mt Applications:It is used for waterproofing of reinforced concrete foundation and blind mold (single face) foundation walls of buildings.Usage areas:• Basements• One sided (blind mold) walls• Tunnels• Infrastructure ProjectsSystem Components:• Canlon MBP Pro 2.00 mm, 1.7 mm, 1.5 mm and 1.2 mm membrane• Canlon MBP Pro Duble Sided Tape (sealed double-sided adhesive tape for tip finishing joints)• Canlon MBP Pro Sanded Tape (mineral sand-coated tape that adheres to the structural concrete that is sealed on one side and on top of it)Advantages:• It bonds to the applied concrete integrally,completely and permanently• It can be applied in the water thanks to the dual adhesive laps. (No Resources Required)• Even in the case of floor seams, it remains sealed to the structure.• Resistant to aggressive chemicals in ground and soil.• It protects the applied structure against methane, radon gases, alkali, salt and sulphate.• It is resistant to weather conditions and it is resistant to UV rays that will be exposed during application for 3 months.• No protection concrete required• It is resistant to laying iron reinforcement on it. Not easily damaged and punctured.• Two sided bonding overlaps has stronger adhesion for edges.
Approvals / Tests:• CE Certificate No: 1023-CRP-0699 F / 2015 EN 13967 Flexible waterproofing membranes• Methane / Radon Gas Test Report ASTM-D1434• Impermeability Test Report Under Hydrostatic Pressure DIN-16726-2011-01• Water Vapor Transmission Rate Test Report ASTM-E96• Water Absorption Test Report ASTM-D570• Elasticity Break Elongation Tensile Strength Test Report ASTM-D412• Puncture Resistance Test Report ASTM-D4833 and ASTM-E154• Concrete Peel Resistance and Flexibility at Low Temperature Test Report ASTM-D1970 / ASTM-D903 Application Method:The surface where MBP Pro is to be applied must be solid and smooth. The application surface may be damp, but no puddles. In order to prevent damage to the membrane, the application surface must be smooth and clean. Large openings and voids should be filled using materials with the required strength.To ensure good adhesion, the joints must be tightened with a roller. Roll finish edges should be taped with MBP Double Tape in corner and piece combinations. In the production of single face curtains, it is necessary to create a smooth bottom surface without spaces.Suitable Surfaces:• Concrete• Smooth Mold Surfaces (Temporary or Permanent)• Rigid thermal insulation• SoilApplication details:The MBP Pro membrane must always be applied to the grain-shaped surface. Membrane is applied on the cleaned surface and application is started. Hot air welding machine can be used to soften the edge adhesive at low temperatures.Double Sided Wall Applications:In the production of double face curtains, after the use of MBP Pro in the basic insulation, it can be sealed with bitumen cement based, polyurethane and polyurea based driving or spraying systems with special transition band.Pile Head Detail:Pile heads should be broken and cleaned. After the loose parts are removed from the surface surface, the product of Canlon MBP Pro can be adhered to each other by a Double Tape and applied around the pile to serve as a mold. After the application of the tapes expanding with water to the repair area of the piles, high strength grout mortars or cement based crystallized waterproofing products are applied to the pile which is corrected with C40 self levelling concrete. The free-layered MBP Pro membrane is used to chamfer using the MS Polymer sealant in combination with the pile head.Application Notes:MBP-P products should only be carried out by Canlon practitioners who have a qualified specialist practice certificate. The MBP Pro product is not permanently UV resistant. The MBP Pro product can be exposed for 3 months during application. It should not be applied permanently on the structural elements exposed to UV and atmospheric effects. Do not apply under prolonged rain.Storage:Clean and protected from direct sunlight and stored on palletsShelf life:It can be stored for 1 year under suitable storage conditions.Environmental Approach:In CANLON MBP Pro applications, membrane and tape packages opened in the field should be disposed of in plastic recycling collection areas.Health and Safety Recommendations:There is a legal requirement for the material safety data sheet for MBP Pro. Please read the product MSDS form for health and safety information.Legal Warning:MBP-P All technical data stated in the product data sheet are based on independent accredited laboratory tests and tests. In fact, the values obtained may vary due to circumstances beyond our control. Our company cannot be held liable for the results that may occur due to misuse and / or use of the product except where and how to use the product. This technical document will be valid until a new one is printed and will override previous editions.MBP Pro Technical Data Sheet - Revision Date 01/2019

MBP Pro,a Professional waterproofing membrane developed for below grade slabs and confined sites of behind basement walls.Product description:MBP Pro waterproofing membrane is a special composite sheet comprised of a robust HDPE or TPO layer, a pressure-sensitive adhesive layer and a special protective layer applied to protect adhesive layer from external factors. Thanks to this feature, it is a professional waterproofing membrane in the composite structure which does not allow water to move between the reinforced concrete structure and membrane. The membrane has two sided bonding overlaps. Application Applied either horizontally to smoothly prepared concrete substrate and compacted earth or crushed stone substrate; or vertically to permanent formwork. Concrete is then cast directly against the adhesive side of the membranes.MBP Pro Membrane is used for the waterproofing of exterior basement walls, foundations, floor plates, etc.The same product is suitable for vertical and horizontal areas. MBP Membrane is usable against pressurized water. Waterproofing to basements of industrial and civil engineering. Pre-applied waterproofing system for walls, tunnels and subways. Advantages·Highly flexible .Granular coating·Pressure sensitive adhesive ·Continuous thickness . Simple installation · Watertight· Highly chemical resistant InstallationApplication-Preparation of the surfaceThe surface must be sound, even, stable and clean. The substrate to be coated should not have protrusions, gaps, joints or voids greater than 10 mm. To prevent movements of penetrations such as pipe penetrations for water and electricity during concrete and membrane installation, they have to be fixed and stabilized. Damaged concrete should be renovated with MBP Multi Mortar first. Sharp edges have to be removed first. Material- horizontal applicationMBP Membrane must be placed with the granular adhesive coating layer upwards and the white layer facing the substrate.The overlapping between the membranes is 75 mm. Before removing the silicone foil(of the overlapping area) ensure that the membranes overlapping edge is positioned correctly. Ensure the back side of each subsequent roll s clean prior to overlapping.Then start removing of plastic film to bond the membranes together. Use a heavy roller to ensure a complete perfect bonding between the membranes. Then go ahead with removing of plastic film and press membranes together.Material-vertical applicationMBP Membrane must be fixed mechanically to the substrate by using fixing tools. These fixings must have a low profile head so that the membrane won't be damaged from the fixings.The overlapping between the membranes is 75 mm. Before removing the plastic film (on the overlapping area)ensure that the membranes overlapping edge is positioned correctly. Ensure the back side of each subsequent roll is clean prior to overlapping.Then start removing of plastic film to bond the membranes together. Use a heavy roller to ensure a complete perfect bonding between the membranes. Then go ahead with removing of plastic film and press membranes together.Repairs before concrete placementIn case of damaging the MBP Membrane during installation of formwork and reinforcement steel placement it is necessary to repair prior pouring of concrete. Pouring of concreteEnsure that all overlapping areas are sealed and the foil is removed in that area. Do not damage the membrane during pouring of concrete.Formwork removalIt is very important not to remove formwork until the concrete has sufficient compressive strength to develop the required adhesion with MBP Membrane. Too early removal of all formworks can lead to a displacement of MBP Membrane and or concrete damage. A minimum concrete compressive strength of 10 N/mm2 recommended prior removing formwork. DisclaimerThe information complies with the current state of development. There is no claim for completeness. A professional and therefore successful processing of the products is not within our responsibility. We accept a warranty only for the quality of the products, but not for processing. It is the responsibility of the user to evaluate the suitability of our products for its purpose. Preliminary tests are recommended. MBP Pro Technical Data Sheet - Revision Date 01/2019 No. Characteristics Performance Test Standard 1 Max. Tensile Force ≥ 650 N/50mm EN 12311-2:2013 2 Elongation at rapture ≥ %400 EN 12311-2:2013 3 Tear strength ≥ 500 N EN 12310-1:2001 4 Reaction to fire Class E EN 13501-1+A1:2009 5 Static loading ≤20kg EN 12730:2001 6 Joint strenght ≥ 600 N/50mm EN 12317-2:2010 7 Impact resistance ≤700mm EN 12691:2006(Method A) 8 Water tightness Pass (24h/60kPa) EN 1928:2000 9 Durability water tightness after artificial ageing Pass EN 1298:2000EN 1926:2001 10 Durability water tightness against chemicals Pass EN 1928:2000EN 1847:2009
